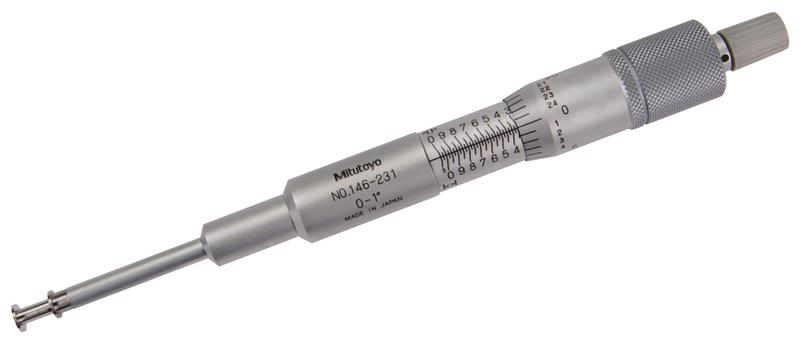

0 Inch -1 Inch Outside Diameter, 0.055 Inch - 1.05 Inch Inside Diameter, 0.001 Inch, Mechanical Groove Micrometer, 0.25 Inch Diameter Flange, Non-Rotating Spindle

  • Item Code: 146-231
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Flanged spindle for measuring width and location of grooves inside/outside bores and tubes.
    • Two-directional ratchet stop.
    • Provided with two types of graduations for inside and outside measurements.

Tech Specs

Back To Top
Case Part Number 470005
Measuring Force .7-1.2N
Secondary Measuring Range Lower .055 In
Thimble Diameter Measurement 21mm
Brand Mitutoyo
Clutch Ratchet Stop
Mechanical or Digital Mechanical
Range 0 - 1 In OD, .055 - 1.05 In ID
Secondary Measuring Range Upper 1.05 In
Case Material Plastic Case
Parallelism .0004 In
Primary Measuring Range Lower - Inch 0 In
Contact Point Diameter .5 In
Primary (Outside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Upper - Inch 1 In
Accuracy ±.0004 In
Individual or Set Individual
Resolution or Graduation .001 In
