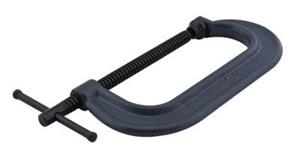

0 - 3 Inch Opening x 1-15/16 Inch Throat, 800 Series Standard Depth Drop Forged C-Clamp

  • Item Code: 14728-JPW
  • Brand: Wilton
  • Unit Size: 1

Description

Wilton 800 Series C-clamps are a smart value alternative for clamping applications that don't require as much throat depth or clamping pressure as a 400 series clamp. Each is drop forged and features replaceable Perma-Pads and spindles.

Features Tech Specs

Features

Back To Top
    • Drop-forged, regular-duty with standard-throat depth
    • A value alternative for clamping, not requiring as much throat depth or clamping pressure as a 400 series clamp
    • Equipped with Wilton Perma-Pads� and a precision-cut, single-lead acme thread
    • ACME rolled spindle and black oxide coating
    • V grooved anvil allows secure holding of all materials including rounds, squares and flats.

Tech Specs

Back To Top
Clamping Force (lbs) 3,000
Gross Weight (lbs.) 1.55
Model Number 803
Spindle Assembly # 1701160
Throat Depth (In.) 1-15/16
UPC 019907147282
Country of Origin CN
Brand Wilton
Opening Capacity Max (In.) 0 - 3
Spindle Diameter (In.) 9/16
