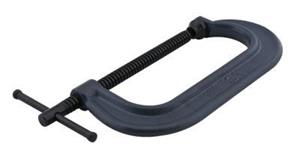

3 - 10 Inch Opening x 3-3/4 Inch Throat, 800 Series Standard Depth Drop Forged C-Clamp
- Item Code: 14784-JPW
- Brand: Wilton
- Unit Size: 1
Description
Wilton 800 Series C-clamps are a smart value alternative for clamping applications that don't require as much throat depth or clamping pressure as a 400 series clamp. Each is drop forged and features replaceable Perma-Pads and spindles.
Features
Back To Top- Drop-forged, regular-duty with standard-throat depth
- A value alternative for clamping, not requiring as much throat depth or clamping pressure as a 400 series clamp
- Equipped with Wilton Perma-Pads� and a precision-cut, single-lead acme thread
- Lifetime Warranty
- V grooved anvil allows secure holding of all materials including rounds, squares and flats.
Tech Specs
Back To Top| Clamping Force (lbs) | 6,000 |
|---|---|
| Gross Weight (lbs.) | 8.3 |
| Model Number | 810 |
| Opening Capacity Max (In.) | 3 - 10 |
| UPC | 019907147848 |
| Country of Origin | CN |
| Throat Depth (In.) | 3-3/4 |
| Spindle Assembly # | 1700190 |
| Spindle Diameter (In.) | 3/4 |
| Brand | Wilton |
