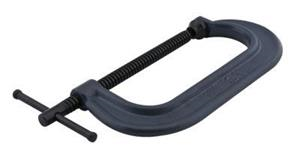

1-1/8 - 12 Inch Opening x 3-7/8 Inch Throat, 800 Series Standard Depth Drop Forged C-Clamp
- Item Code: 14798-JPW
- Brand: Wilton
- Unit Size: 1
Description
Wilton 800 Series C-clamps are a smart value alternative for clamping applications that don't require as much throat depth or clamping pressure as a 400 series clamp. Each is drop forged and features replaceable Perma-Pads and spindles.
Features
Back To Top- Drop-forged, regular-duty with standard-throat depth
- A value alternative for clamping, not requiring as much throat depth or clamping pressure as a 400 series clamp
- Equipped with Wilton Perma-Pads� and a precision-cut, single-lead acme thread
- ACME rolled spindle and black oxide coating
- V grooved anvil allows secure holding of all materials including rounds, squares and flats.
Tech Specs
Back To Top| Model Number | 812 |
|---|---|
| Opening Capacity Max (In.) | 1-1/8 - 12 |
| Spindle Assembly # | 1700630 |
| Throat Depth (In.) | 3-7/8 |
| UPC | 019907147985 |
| Spindle Diameter (In.) | 3/4 |
| Brand | Wilton |
| Gross Weight (lbs.) | 14.9 |
| Clamping Force (lbs) | 8,000 |
| Country of Origin | CN |
