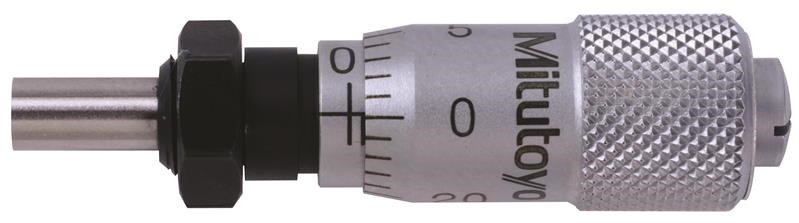

0 Inch -1/4 Inch, 0.001 Inch, Mechanical Micrometer Head, 1/4 Inch Diameter Stem with Clamp Nut, Flat Spindle Face

  • Item Code: 148-204
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Miniature micrometer heads for ease of incorporating into machines.
    • Scale surface has hard-chrome plating
    • Lapped surface spindle face

Tech Specs

Back To Top
Thimble Diameter Measurement 9.3mm
Resolution or Graduation .001 In
Spindle Face Flat
Stem Diameter Measurement .25 In
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch .25 In
Accuracy ±5µm
Brand Mitutoyo
Mechanical or Digital Mechanical
Range 0 -.25 In
Contact Point Diameter 3.5mm
Individual or Set Individual
