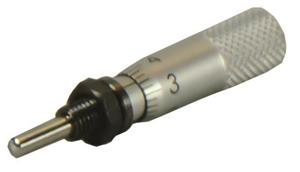

0-5mm, 0.01mm, Mechanical Micrometer Head, Ultra-Small, 3.5mm Diameter Stem with Clamp Nut, Spherical (SR1.5) Spindle Face

  • Item Code: 148-216
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Miniature micrometer heads for ease of incorporating into machines.
    • Scale surface has hard-chrome plating
    • Lapped surface spindle face

Tech Specs

Back To Top
Primary Measuring Range Upper - Metric 5mm
Range 0 - 5mm
Stem Diameter Measurement 3.5mm
Thimble Diameter Measurement 6mm
Contact Point Diameter 3.5mm
Resolution or Graduation .01mm
Spindle Face Spherical
Accuracy ±5µm
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary Measuring Range Lower - Metric 0
Individual or Set Individual
Clamp Nut Y
