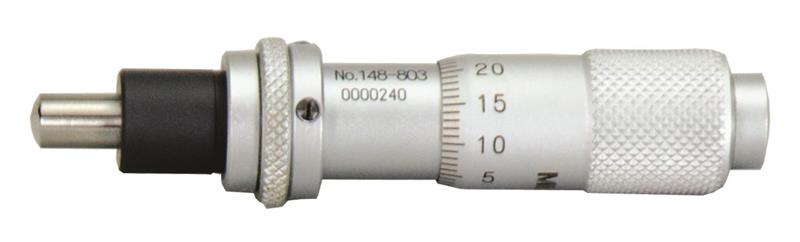

0-13mm, 0.01mm, Mechanical Micrometer Head, 9.5mm Diameter Plain Stem, Spherical (SR4) Spindle Face, Spindle Lock

  • Item Code: 148-803
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Easy reading due to the large thimble diameter.
    • Scale surface has hard-chrome plating
    • Lapped surface spindle face

Tech Specs

Back To Top
Case Material paper case
Range 0 - 13mm
Thimble Diameter Measurement 13mm
Primary Measuring Range Upper - Metric 13mm
Spindle Lock Y
Resolution or Graduation .01mm
Spindle Face Flat
Stem Diameter Measurement 9.5mm
Primary Measuring Range Lower - Metric 0mm
Case Part Number 472039
Contact Point Diameter 5mm
Mechanical or Digital Mechanical
Accuracy ±2µm
Individual or Set Individual
Brand Mitutoyo
