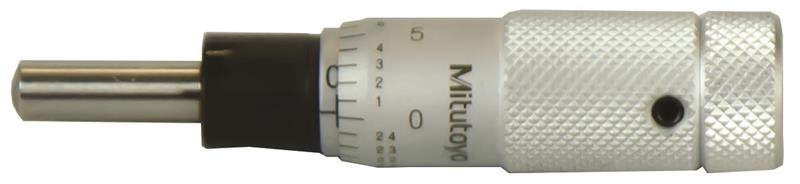

0 Inch - 1/2 Inch, 0.001 In, Mechanical Micrometer Head, 3/8 Inch Diameter Plain Stem, Spherical (SR4) Spindle Face, Zero-Adjust Thimble

  • Item Code: 148-851
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The thimble can be set to zero at any postion by loosening the setscrew.
    • Scale surface has hard-chrome plating
    • Lapped surface spindle face

Tech Specs

Back To Top
Primary Measuring Range Upper - Inch .5 In
Range 0 - .5 In
Spindle Face Spherical
Primary Measuring Range Lower - Inch 0 In
Clamp Nut N
Individual or Set Individual
Resolution or Graduation .001 In
Stem Diameter Measurement .375 In
Thimble Diameter Measurement 13mm
Brand Mitutoyo
Case Material paper case
Case Part Number 472039
Contact Point Diameter 5mm
Mechanical or Digital Mechanical
Accuracy ±.0001 In
