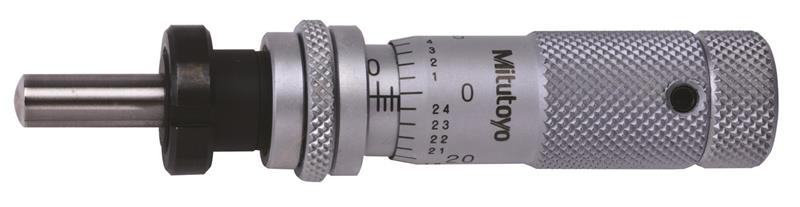

0 Inch - 1/2 Inch, 0.001 Inch, Mechanical Micrometer Head, 3/8 Inch Diameter Stem with Clamp Nut, Spherical (SR4) Spindle Face, Zero-Adjust Thimble

  • Item Code: 148-852
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The thimble can be set to zero at any postion by loosening the setscrew.
    • Scale surface has hard-chrome plating
    • Lapped surface spindle face

Tech Specs

Back To Top
Clamp Nut Y
Individual or Set Individual
Resolution or Graduation .001 In
Spindle Face Spherical
Brand Mitutoyo
Case Material paper case
Case Part Number 472039
Mechanical or Digital Mechanical
Thimble Diameter Measurement 13mm
Stem Diameter Measurement .375 In
Accuracy ±.0001 In
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch .5 In
Range 0 - .5 In
Contact Point Diameter 5mm
