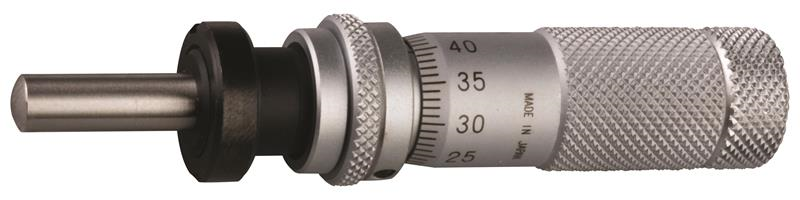

0-13mm, 0.01mm, Mechanical Micrometer Head, 9.5mm Diameter Stem with Clamp Nut, Spherical (SR4) Spindle Face, Spindle Lock, Zero-Adjust Thimble

  • Item Code: 148-854
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The thimble can be set to zero at any postion by loosening the setscrew.
    • Scale surface has hard-chrome plating
    • Lapped surface spindle face

Tech Specs

Back To Top
Case Material paper case
Spindle Face Spherical
Clamp Nut Y
Primary Measuring Range Upper - Metric 13mm
Individual or Set Individual
Stem Diameter Measurement 9.5mm
Accuracy ±2µm
Brand Mitutoyo
Resolution or Graduation .01mm
Range 0 - 13mm
Thimble Diameter Measurement 13mm
Case Part Number 472039
Contact Point Diameter 5mm
Mechanical or Digital Mechanical
Primary Measuring Range Lower - Metric 0mm
