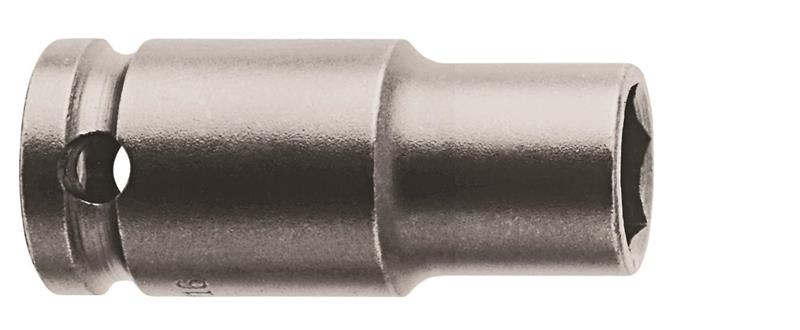

1/2 Inch Square Drive Socket, 14 mm Hex Opening, 6 Point Hex, Standard Thin Wall Length
- Item Code: 14MM45
- Brand: Apex
- Unit Size: 1
Description
6 Point & Double Hex, Thin Wall, Standard Length
Features
Back To Top- Impact Rated; Meets or Exceeds Proof Torque Requirement for Impact Standard ASME B107.113
- Made in the USA - Quality and Availability
- High-Carbon Alloy Steel and Proprietary Heat Treat Process Yields Greater Strength and Longer Life
- Cutting-edge Machining Process Allows Apex to Meet or Exceed Licensor Standards, Resulting in Tighter Tolerances and Superior Product Consistency
- Better and More Consistent Fit to Fasteners Leads to Better Torque Transfer
Tech Specs
Back To Top| Diameter Nose End (B) | 20.6 mm |
|---|---|
| Overall Length (A) | 38.1 mm |
| Hex Opening | 14 mm |
| Tool Type | 1/2” Square Drive Sockets, Metric |
| Type | Socket |
| Brand | Apex |
| Diameter Drive End (C) | 23.8 mm |
| Magnetism | Non-Magnetic |
| Opening Depth (D) | 11.1 mm |
| Socket Type Length | Standard Thin Wall |
| U-Guard | No |
| Opening Modifer | 6 Point Hex |
