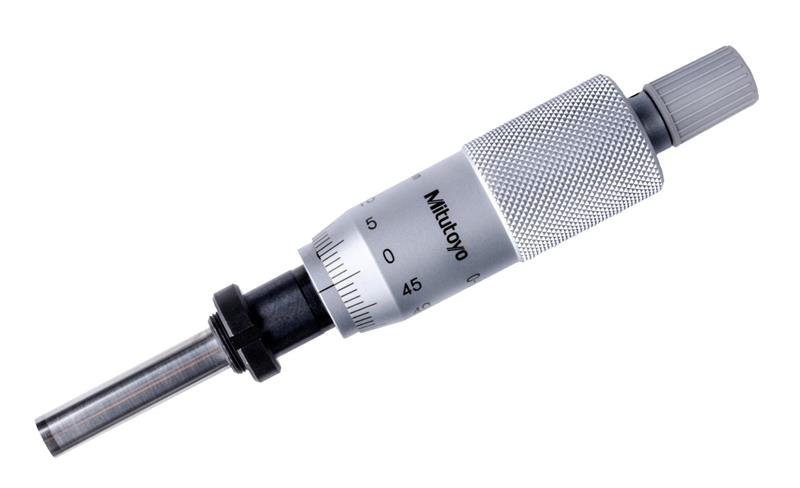

0-25mm, 0.01mm, Mechanical Micrometer Head, 10mm Diameter Stem with Clamp Nut, Flat Carbide Tipped Spindle Face

  • Item Code: 150-191
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ratchet Stop for constant force.
    • Scale surface has hard-chrome plating
    • Carbide tipped measuring face.

Tech Specs

Back To Top
Stem Diameter Measurement 10mm
Clamp Nut Y
Contact Point Diameter 6.35mm
Range 0 - 25mm
Resolution or Graduation .01, .001mm
Thimble Diameter Measurement 18mm
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Metric 25mm
Spindle Face Flat
Brand Mitutoyo
Mechanical or Digital Mechanical
Accuracy ±2µm
Individual or Set Individual
Primary Measuring Range Lower - Metric 0mm
