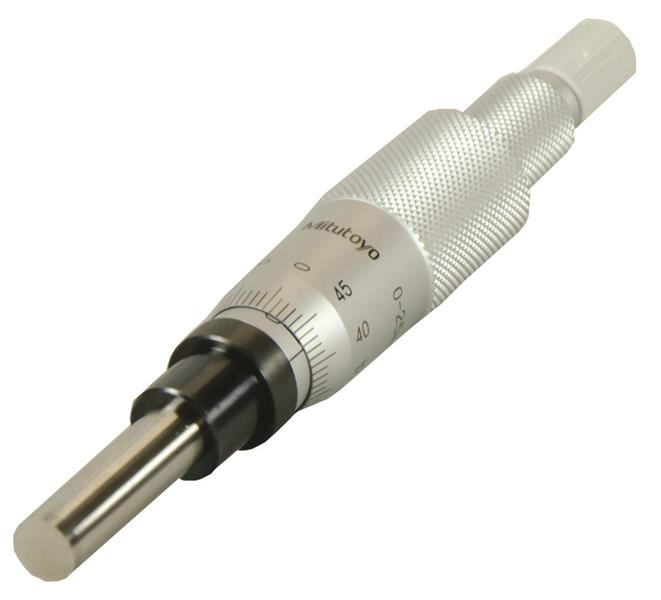

0-1 Inch, .001 Inch, Mechanical Micrometer Head, .375 Inch Diameter Plain Stem, Flat Carbide Tipped Spindle Face, No Ratchet Stop

  • Item Code: 150-198
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ratchet Stop for constant force.
    • Scale surface has hard-chrome plating
    • Carbide tipped measuring face.

Tech Specs

Back To Top
Resolution or Graduation .01, .001mm
Contact Point Diameter 6.35mm
Primary Measuring Range Lower - Inch 0 In
Range 0 - 1 In
Stem Diameter Measurement .375 In
Thimble Diameter Measurement 18mm
Individual or Set Individual
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary Measuring Range Upper - Inch 1 In
Accuracy ±.0001 In
Clamp Nut N
Spindle Face Flat
Primary (Outside Diameter) Contact Point Material Carbide
