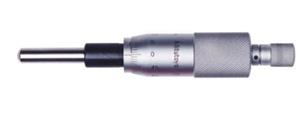

0-1 Inch, .001 Inch, Mechanical Micrometer Head, .375 Inch Diameter Plain Stem, Flat Spindle Face

  • Item Code: 150-811
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ratchet Stop for constant force.
    • Long Spindle type is available for a variety of applications.
    • Carbide tipped measuring face.

Tech Specs

Back To Top
Spindle Face Spherical
Thimble Diameter Measurement 18mm
Primary Measuring Range Lower - Inch 0 In
Accuracy ±.0001 In
Primary (Outside Diameter) Contact Point Material Carbide
Resolution or Graduation 0.001, .0001 In
Contact Point Diameter 6.35mm
Range 0 - 1 In
Clamp Nut N
Mechanical or Digital Mechanical
Back Type Flat
Brand Mitutoyo
Stem Diameter Measurement .375 In
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
