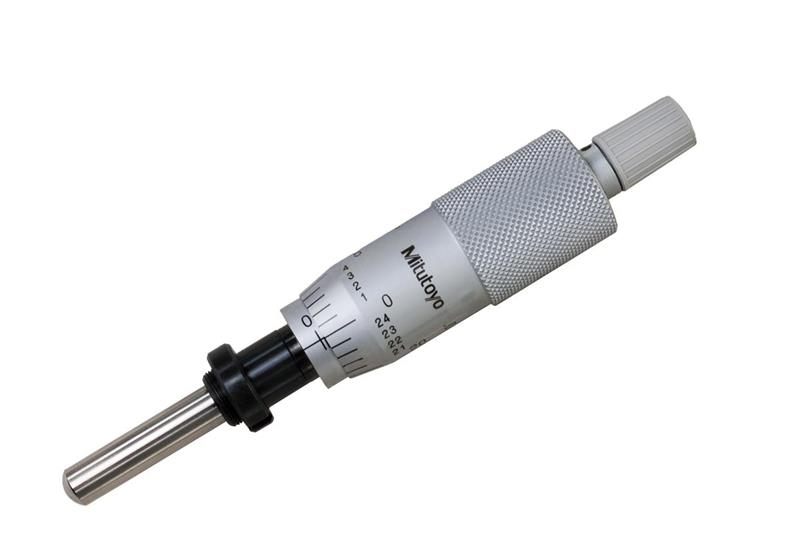

0-1 Inch, .001 Inch, Mechanical Micrometer Head, .375 Inch Diameter Spherical (SR4), Flat Spindle Face

  • Item Code: 150-812
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ratchet Stop for constant force.
    • Long Spindle type is available for a variety of applications.
    • Carbide tipped measuring face.

Tech Specs

Back To Top
Back Type Flat
Spindle Face Spherical
Clamp Nut Y
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 0 In
Range 0 - 1 In
Accuracy ±.0001 In
Individual or Set Individual
Resolution or Graduation 0.001, .0001 In
Primary Measuring Range Upper - Inch 1 In
Brand Mitutoyo
Contact Point Diameter 6.35mm
Mechanical or Digital Mechanical
Stem Diameter Measurement .375 In
Thimble Diameter Measurement 18mm
