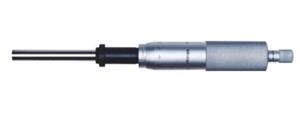

0 Inch - 2 Inch, 0.001 Inch, Mechanical Micrometer Head, 1/2 Inch Diameter Plain Stem, 8mm Diameter Flat Carbide Tipped Spindle Face

  • Item Code: 151-272
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 8mm diameter spindle fo heavy duty use.
    • Ratchet stop for constant force
    • Carbide tipped measuring face.

Tech Specs

Back To Top
Range 0 - 2 In
Resolution or Graduation 0.001, .0001 In
Stem Diameter Measurement .5 In
Spindle Face Flat
Accuracy ±.0002 In
Thimble Diameter Measurement 21mm
Clamp Nut N
Contact Point Diameter 8mm
Individual or Set Individual
Brand Mitutoyo
Mechanical or Digital Mechanical
Back Type Flat
Primary Measuring Range Lower - Inch 0 In
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Inch 2 In
