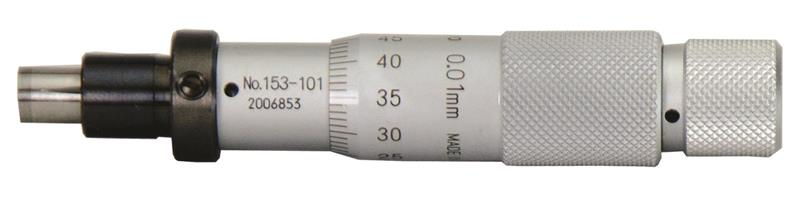

0-15mm, 0.01mm (0.001mm with Vernier), Mechanical Micrometer Head, 9.5mm Diameter Plain Stem, Flat Carbide Tipped Spindle Face, Non-Rotating Spindle

  • Item Code: 153-101
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Carbide tipped measuring face.
    • Non-rotating spindle eliminates torgue on workpiece.
    • w/ vernier (0.001mm)

Tech Specs

Back To Top
Accuracy ±3µm
Back Type Flat
Primary Measuring Range Lower - Metric 0mm
Thimble Diameter Measurement 15.3mm
Brand Mitutoyo
Resolution or Graduation .01, .001mm
Clamp Nut N
Range 0 - 15mm
Spindle Face Flat
Stem Diameter Measurement .375 In
Contact Point Diameter 6.35mm
Mechanical or Digital Mechanical
Individual or Set Individual
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Metric 15mm
