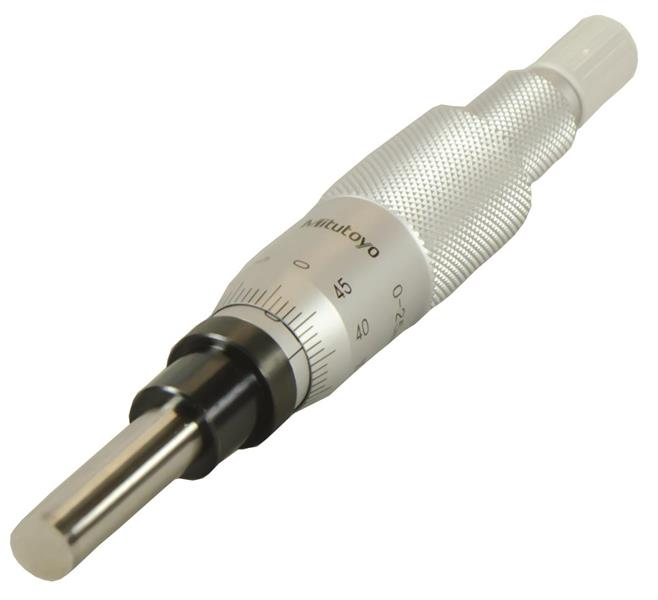

0-25mm, 0.01mm, Mechanical Micrometer Head, 12mm Diameter Plain Stem, Flat Carbide Tipped Spindle Face, Non-Rotating Spindle, Ratchet Stop

  • Item Code: 153-201
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Carbide tipped measuring face.
    • Non-rotating spindle eliminates torgue on workpiece.
    • with ratchet stop

Tech Specs

Back To Top
Stem Diameter Measurement 12mm
Spindle Face Flat
Accuracy ±3µm
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Upper - Metric 25mm
Range 0 - 25mm
Resolution or Graduation .01, .001mm
Clamp Nut N
Individual or Set Individual
Back Type Flat
Thimble Diameter Measurement 15.3mm
Brand Mitutoyo
Contact Point Diameter 6.35mm
Mechanical or Digital Mechanical
Primary Measuring Range Lower - Metric 0mm
