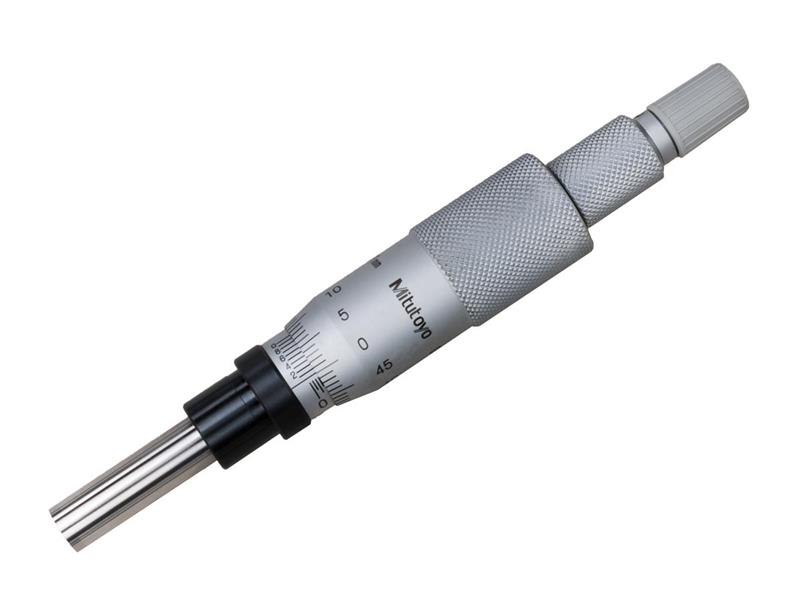

0-25mm, 0.01mm (0.001mm with Vernier), Mechanical Micrometer Head, 12mm Diameter Plain Stem, Flat Carbide Tipped Spindle Face, Non-Rotating Spindle, Ratchet Stop

  • Item Code: 153-202
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Carbide tipped measuring face.
    • Non-rotating spindle eliminates torgue on workpiece.
    • with ratchet stop and w/ vernier (0.001mm)

Tech Specs

Back To Top
Range 0 - 25mm
Resolution or Graduation .01, .001mm
Spindle Face Flat
Accuracy ±3µm
Back Type Flat
Brand Mitutoyo
Primary (Outside Diameter) Contact Point Material Carbide
Thimble Diameter Measurement 15.3mm
Clamp Nut N
Individual or Set Individual
Stem Diameter Measurement .375 In
Primary Measuring Range Lower - Metric 0mm
Primary Measuring Range Upper - Metric 25mm
Contact Point Diameter 6.35mm
Mechanical or Digital Mechanical
