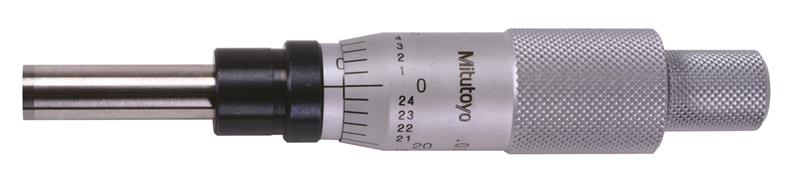

0 Inch - 1 Inch, 0.001 Inch, Mechanical Micrometer Head, 1/2 Inch Diameter Plain Stem, Flat Carbide Tipped Spindle Face, Non-Rotating Spindle

  • Item Code: 153-207
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Carbide tipped measuring face.
    • Non-rotating spindle eliminates torgue on workpiece.

Tech Specs

Back To Top
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Carbide
Resolution or Graduation 0.001, .0001 In
Spindle Face Flat
Thimble Diameter Measurement 15.3mm
Accuracy ±.00015 In
Clamp Nut N
Primary Measuring Range Lower - Inch 0 In
Range 0 - 1 In
Contact Point Diameter 6.35mm
Back Type Flat
Brand Mitutoyo
Stem Diameter Measurement .375 In
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
