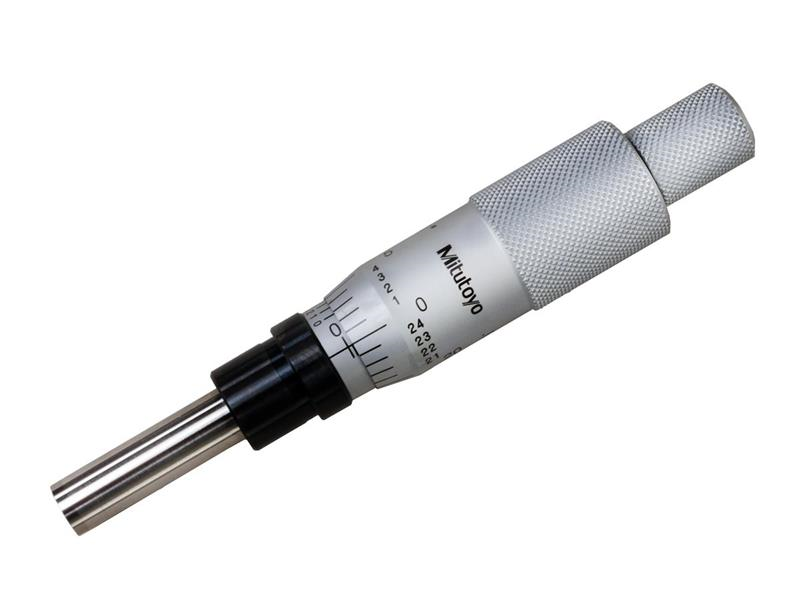

0 Inch - 1 Inch, 0.001 Inch (.0001 In with Vernier), Mechanical Micrometer Head, 1/2 Inch Diameter Plain Stem, Flat Carbide Tipped Spindle Face, Non-Rotating Spindle

  • Item Code: 153-208
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Carbide tipped measuring face.
    • Non-rotating spindle eliminates torgue on workpiece.
    • w/ vernier (0.001mm)

Tech Specs

Back To Top
Primary Measuring Range Upper - Inch 1 In
Spindle Face Flat
Mechanical or Digital Mechanical
Stem Diameter Measurement .375 In
Thimble Diameter Measurement 15.3mm
Clamp Nut N
Individual or Set Individual
Accuracy ±.00015 In
Contact Point Diameter 6.35mm
Back Type Flat
Brand Mitutoyo
Primary Measuring Range Lower - Inch 0 In
Range 0 - 1 In
Primary (Outside Diameter) Contact Point Material Carbide
Resolution or Graduation 0.001, .0001 In
