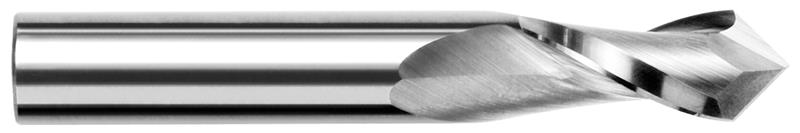

0.0156 in. (1/64) Cutter Diameter x 0.0470 in. (3/64) Length of Cut x 90 Deg. Included Mill Style 2 Flute Carbide Drill/End Mill

  • Item Code: 15301-2
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for chamfering, milling, and some spotting applications
    • Not recommended for drilling steel
    • 2 flutes
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Material Solid Carbide
Decimal Diameter 0.0156"
Length of Cut Multiple (3x)
Shank Diameter 0.1250" (1/8)
Angle per Side 45
Fractional Diameter 1/64"
Included Angle 90
Overall Length 1.5000" (1-1/2)
Coating None
Web Thickness 0.0015"
Length of Cut 0.0470" (3/64)
Number of Flutes 2
