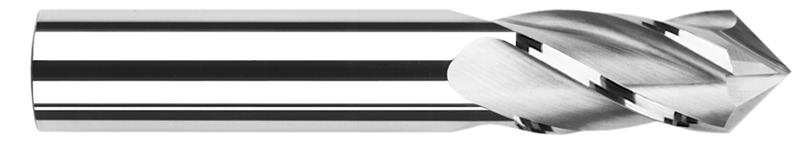

0.0312 in. (1/32) Cutter Diameter x 0.0930 in. (3/32) Length of Cut x 90 Deg. Included Mill Style 4 Flute Carbide Drill/End Mill

  • Item Code: 15302-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating None
Decimal Diameter 0.0312"
Material Solid Carbide
Web Thickness 0.0030"
Angle per Side 45
Brand Harvey Tool
Included Angle 90
Overall Length 1.5000" (1-1/2)
Fractional Diameter 1/32"
Length of Cut 0.0930" (3/32)
Number of Flutes 4
Shank Diameter 0.1250" (1/8)
Length of Cut Multiple (3x)
