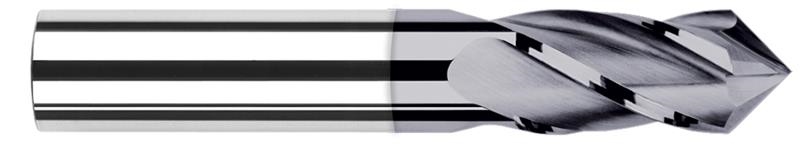

0.1406 in. (9/64) Cutter Diameter x 0.5620 in. (9/16) Length of Cut x 90 Deg. Included Mill Style 4 Flute AlTiN Coated Carbide Drill/End Mill

  • Item Code: 15309-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Length of Cut Multiple (4x)
Material Solid Carbide
Decimal Diameter 0.1406"
Overall Length 2.0000" (2)
Included Angle 90
Web Thickness 0.0060"
Fractional Diameter 9/64"
Angle per Side 45
Length of Cut 0.5620" (9/16)
Number of Flutes 4
Shank Diameter 0.1875" (3/16)
Coating AlTiN
