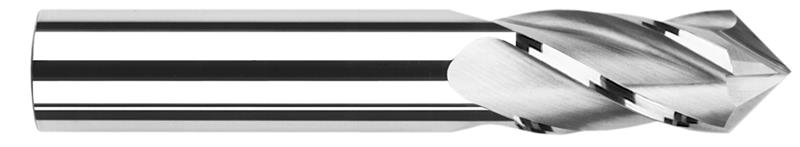

0.1406 in. (9/64) Cutter Diameter x 0.5620 in. (9/16) Length of Cut x 90 Deg. Included Mill Style 4 Flute Carbide Drill/End Mill

  • Item Code: 15309-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating None
Decimal Diameter 0.1406"
Web Thickness 0.0060"
Length of Cut Multiple (4x)
Material Solid Carbide
Overall Length 2.0000" (2)
Angle per Side 45
Included Angle 90
Number of Flutes 4
Fractional Diameter 9/64"
Length of Cut 0.5620" (9/16)
Shank Diameter 0.1875" (3/16)
Brand Harvey Tool
