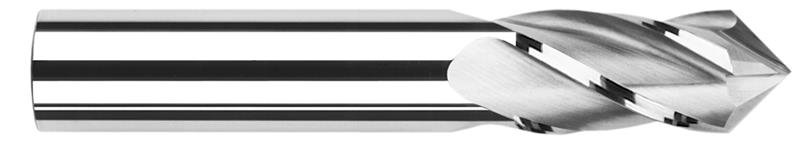

0.1562 in. (5/32) Cutter Diameter x 0.5620 in. (9/16) Length of Cut x 90 Deg. Included Mill Style 4 Flute Carbide Drill/End Mill

  • Item Code: 15310-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Overall Length 2.0000" (2)
Coating None
Web Thickness 0.0060"
Angle per Side 45
Brand Harvey Tool
Decimal Diameter 0.1562"
Fractional Diameter 5/32"
Length of Cut Multiple (4x)
Material Solid Carbide
Number of Flutes 4
Included Angle 90
Length of Cut 0.5620" (9/16)
Shank Diameter 0.1875" (3/16)
