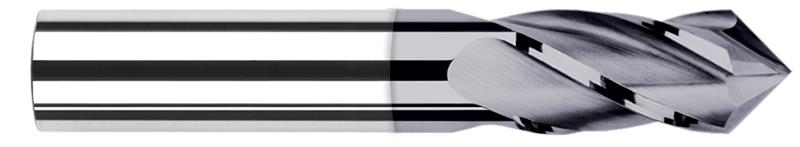

0.2500 in. (1/4) Cutter Diameter x 0.7500 in. (3/4) Length of Cut x 90 Deg. Included Mill Style 4 Flute AlTiN Coated Carbide Drill/End Mill

  • Item Code: 15316-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Included Angle 90
Length of Cut Multiple (3x)
Fractional Diameter 1/4"
Length of Cut 0.7500" (3/4)
Number of Flutes 4
Coating AlTiN
Decimal Diameter 0.2500"
Brand Harvey Tool
Overall Length 2.5000" (2-1/2)
Material Solid Carbide
Web Thickness 0.0060"
Angle per Side 45
Shank Diameter 0.2500" (1/4)
