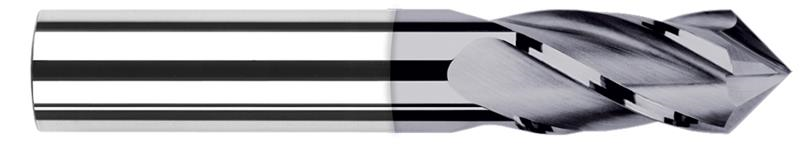

0.3750 in. (3/8) Cutter Diameter x 0.8750 in. (7/8) Length of Cut x 90 Deg. Included Mill Style 4 Flute AlTiN Coated Carbide Drill/End Mill

  • Item Code: 15324-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Diameter 3/8"
Overall Length 2.5000" (2-1/2)
Length of Cut 0.8750" (7/8)
Material Solid Carbide
Angle per Side 45
Brand Harvey Tool
Length of Cut Multiple (2x)
Coating AlTiN
Decimal Diameter 0.3750"
Number of Flutes 4
Web Thickness 0.0080"
Included Angle 90
Shank Diameter 0.3750" (3/8)
