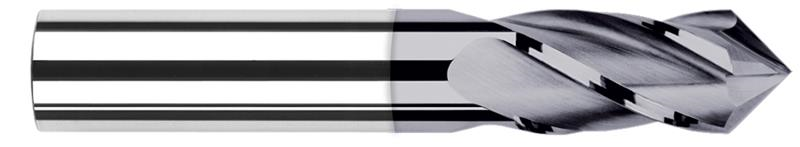

0.4375 in. (7/16) Cutter Diameter x 1.0000 in. (1) Length of Cut x 90 Deg. Included Mill Style 4 Flute AlTiN Coated Carbide Drill/End Mill

  • Item Code: 15328-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 45
Included Angle 90
Length of Cut 1.0000" (1)
Number of Flutes 4
Decimal Diameter 0.4375"
Fractional Diameter 7/16"
Material Solid Carbide
Coating AlTiN
Shank Diameter 0.4375" (7/16)
Overall Length 2.7500" (2-3/4)
Brand Harvey Tool
Length of Cut Multiple (2x)
Web Thickness 0.0080"
