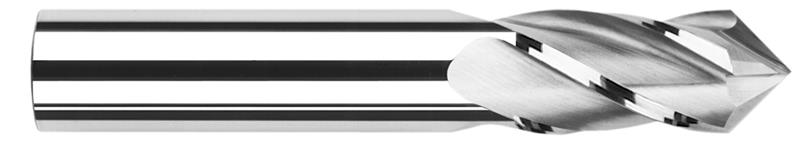

0.5000 in. (1/2) Cutter Diameter x 1.0000 in. (1) Length of Cut x 90 Deg. Included Mill Style 4 Flute Carbide Drill/End Mill

  • Item Code: 15332-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Shank Diameter 0.5000" (1/2)
Web Thickness 0.0080"
Length of Cut 1.0000" (1)
Coating None
Decimal Diameter 0.5000"
Fractional Diameter 1/2"
Included Angle 90
Angle per Side 45
Material Solid Carbide
Number of Flutes 4
Brand Harvey Tool
Length of Cut Multiple (2x)
Overall Length 3.0000" (3)
