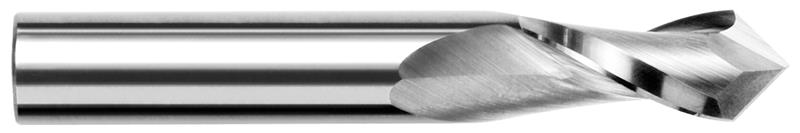

0.1181 in. (3 mm) Cutter Diameter x 0.3750 in. (3/8) Length of Cut x 90 Deg. Included Mill Style 2 Flute Carbide Drill/End Mill

  • Item Code: 1533M-2
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for chamfering, milling, and some spotting applications
    • Not recommended for drilling steel
    • 2 flutes
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.3750" (3/8)
Shank Diameter 0.1250" (1/8)
Included Angle 90
Decimal Diameter 0.1181"
Length of Cut Multiple (3x)
Overall Length 1.5000" (1-1/2)
Angle per Side 45
Material Solid Carbide
Metric Diameter 3.00 mm
Coating None
Number of Flutes 2
Brand Harvey Tool
Web Thickness 0.0050"
