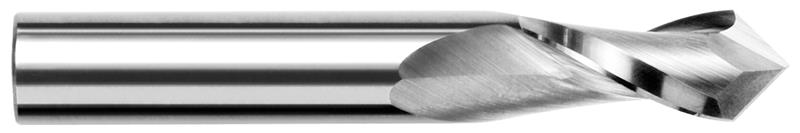

0.6250 in. (5/8) Cutter Diameter x 1.2500 in. (1-1/4) Length of Cut x 90 Deg. Included Mill Style 2 Flute Carbide Drill/End Mill

  • Item Code: 15340-2
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for chamfering, milling, and some spotting applications
    • Not recommended for drilling steel
    • 2 flutes
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Length of Cut 1.2500" (1-1/4)
Shank Diameter 0.6250" (5/8)
Overall Length 3.5000" (3-1/2)
Decimal Diameter 0.6250"
Included Angle 90
Fractional Diameter 5/8"
Number of Flutes 2
Web Thickness 0.0090"
Coating None
Length of Cut Multiple (2x)
Angle per Side 45
Material Solid Carbide
