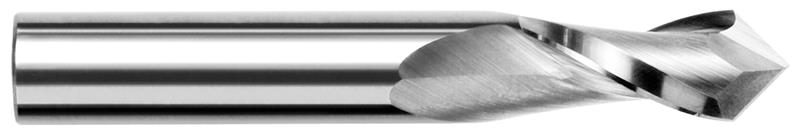

0.7500 in. (3/4) Cutter Diameter x 1.5000 in. (1-1/2) Length of Cut x 90 Deg. Included Mill Style 2 Flute Carbide Drill/End Mill

  • Item Code: 15348-2
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for chamfering, milling, and some spotting applications
    • Not recommended for drilling steel
    • 2 flutes
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating None
Decimal Diameter 0.7500"
Length of Cut Multiple (2x)
Material Solid Carbide
Shank Diameter 0.7500" (3/4)
Web Thickness 0.0100"
Brand Harvey Tool
Fractional Diameter 3/4"
Number of Flutes 2
Included Angle 90
Angle per Side 45
Length of Cut 1.5000" (1-1/2)
Overall Length 4.0000" (4)
