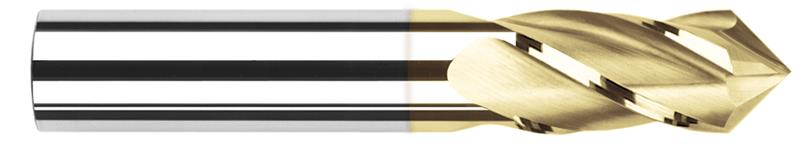

0.7500 in. (3/4) Cutter Diameter x 1.5000 in. (1-1/2) Length of Cut x 90 Deg. Included Mill Style 4 Flute TiN Coated Carbide Drill/End Mill

  • Item Code: 15348-C1
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Material Solid Carbide
Web Thickness 0.0100"
Included Angle 90
Number of Flutes 4
Overall Length 4.0000" (4)
Coating TiN
Angle per Side 45
Decimal Diameter 0.7500"
Fractional Diameter 3/4"
Length of Cut 1.5000" (1-1/2)
Shank Diameter 0.7500" (3/4)
Brand Harvey Tool
Length of Cut Multiple (2x)
