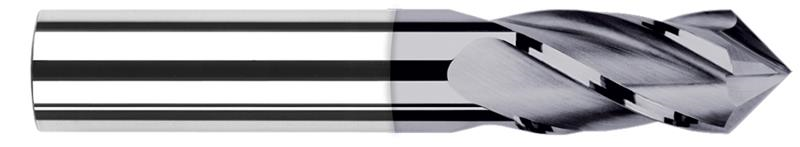

0.7500 in. (3/4) Cutter Diameter x 1.5000 in. (1-1/2) Length of Cut x 90 Deg. Included Mill Style 4 Flute AlTiN Coated Carbide Drill/End Mill

  • Item Code: 15348-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Included Angle 90
Web Thickness 0.0100"
Brand Harvey Tool
Length of Cut Multiple (2x)
Coating AlTiN
Angle per Side 45
Decimal Diameter 0.7500"
Fractional Diameter 3/4"
Length of Cut 1.5000" (1-1/2)
Material Solid Carbide
Number of Flutes 4
Overall Length 4.0000" (4)
Shank Diameter 0.7500" (3/4)
