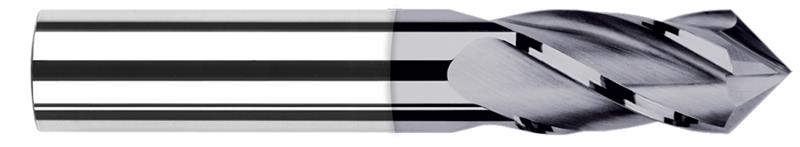

1.0000 in. (1) Cutter Diameter x 2.0000 in. (2) Length of Cut x 90 Deg. Included Mill Style 4 Flute AlTiN Coated Carbide Drill/End Mill

  • Item Code: 15364-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 2.0000" (2)
Coating AlTiN
Decimal Diameter 1.0000"
Web Thickness 0.0100"
Included Angle 90
Shank Diameter 1.0000" (1)
Brand Harvey Tool
Fractional Diameter 1"
Length of Cut Multiple (2x)
Angle per Side 45
Material Solid Carbide
Number of Flutes 4
Overall Length 4.0000" (4)
