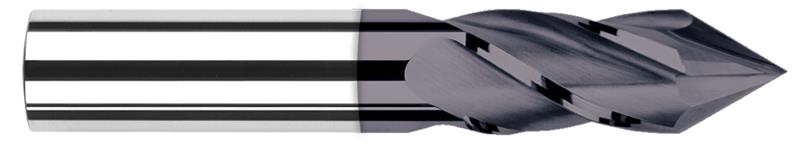

0.0625 in. (1/16) Cutter Diameter x 0.1870 in. (3/16) Length of Cut x 60 Deg. Included Mill Style 4 Flute AlTiN Coated Carbide Drill/End Mill

  • Item Code: 15404-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 4
Shank Diameter 0.1250" (1/8)
Coating AlTiN
Overall Length 1.5000" (1-1/2)
Angle per Side 30
Decimal Diameter 0.0625"
Included Angle 60
Material Solid Carbide
Fractional Diameter 1/16"
Length of Cut 0.1870" (3/16)
Length of Cut Multiple (3x)
Web Thickness 0.0050"
Brand Harvey Tool
