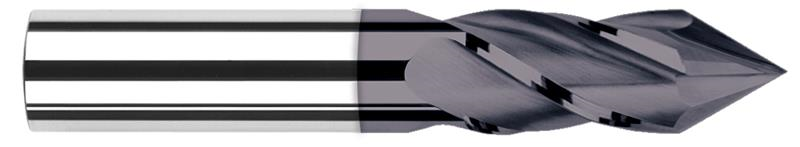

0.0781 in. (5/64) Cutter Diameter x 0.2500 in. (1/4) Length of Cut x 60 Deg. Included Mill Style 4 Flute AlTiN Coated Carbide Drill/End Mill

  • Item Code: 15405-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 4
Shank Diameter 0.1250" (1/8)
Coating AlTiN
Decimal Diameter 0.0781"
Overall Length 1.5000" (1-1/2)
Length of Cut Multiple (3x)
Brand Harvey Tool
Fractional Diameter 5/64"
Length of Cut 0.2500" (1/4)
Web Thickness 0.0050"
Angle per Side 30
Included Angle 60
Material Solid Carbide
