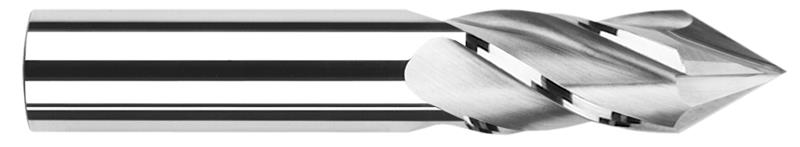

0.1250 in. (1/8) Cutter Diameter x 0.5000 in. (1/2) Length of Cut x 60 Deg. Included Mill Style 4 Flute Carbide Drill/End Mill

  • Item Code: 15408-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Web Thickness 0.0050"
Angle per Side 30
Brand Harvey Tool
Length of Cut Multiple (4x)
Material Solid Carbide
Coating None
Decimal Diameter 0.1250"
Included Angle 60
Number of Flutes 4
Overall Length 1.5000" (1-1/2)
Shank Diameter 0.1250" (1/8)
Fractional Diameter 1/8"
Length of Cut 0.5000" (1/2)
