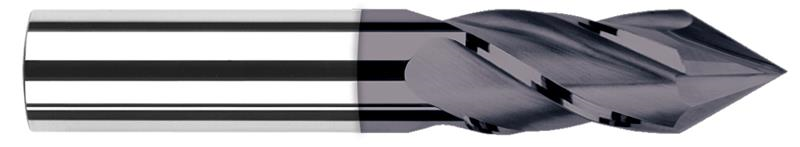

0.1875 in. (3/16) Cutter Diameter x 0.6250 in. (5/8) Length of Cut x 60 Deg. Included Mill Style 4 Flute AlTiN Coated Carbide Drill/End Mill

  • Item Code: 15412-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.6250" (5/8)
Web Thickness 0.0060"
Brand Harvey Tool
Overall Length 2.0000" (2)
Shank Diameter 0.1875" (3/16)
Fractional Diameter 3/16"
Coating AlTiN
Decimal Diameter 0.1875"
Length of Cut Multiple (3x)
Angle per Side 30
Included Angle 60
Material Solid Carbide
Number of Flutes 4
