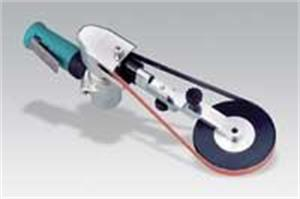

.7 hp, 7° Offset, 20,000 RPM, Front Exhaust, 1/4 Inch, 1/2 Inch W x 24 Inch L (6 mm, 13 mm x 610 mm) Belts, Dynafile III Abrasive Belt Tool

  • Item Code: 15420
  • Brand: Dynabrade
  • Unit Size: 1

Description

Dynafile III Abrasive Belt Tool offers all the versatility of our world-famous Dynafile II, while serving up more power (.7 hp / 522 W) for faster material removal.

Includes 11702 Contact Arm with unique 4"diameter wheel, for grinding or blending right angle welds and fillit welds. Contact Arm includes hand guide for additional control. Saves time and reduces costs!

Features Tech Specs

Features

Back To Top
    • Grinds corner welds with no undercutting. Tool accepts belts 24" long, in widths of 1/4"or 1/2".
    • Tool grinding head pivots 180 degrees.

Tech Specs

Back To Top
Belt Size Inches (mm) 1/4" (6) or 1/2" (13) W x 24" (610) L
Height Inches (mm) 4-7/8" (124)
hp (W) .7 (522)
Exhaust Type Front Exhaust
Air Inlet Thread 1/4" NPT
Max. SFPM (SM/Min.) 4,550 (1,382)
Length Inches (mm) 14" (356)
Motor Free Speed (RPM) 20,000
Brand Dynabrade
Hose I.D. Size Inches (mm) 3/8" (10)
Motor Style 7 Degree Offset
