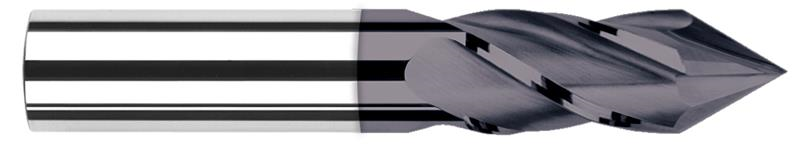

0.7500 in. (3/4) Cutter Diameter x 1.5000 in. (1-1/2) Length of Cut x 60 Deg. Included Mill Style 4 Flute AlTiN Coated Carbide Drill/End Mill

  • Item Code: 15448-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 30
Brand Harvey Tool
Fractional Diameter 3/4"
Length of Cut 1.5000" (1-1/2)
Length of Cut Multiple (2x)
Material Solid Carbide
Number of Flutes 4
Decimal Diameter 0.7500"
Included Angle 60
Overall Length 4.0000" (4)
Shank Diameter 0.7500" (3/4)
Coating AlTiN
Web Thickness 0.0100"
