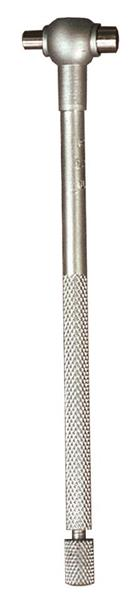

1/2 to 3/4 Inch, 4.3307 Inch Overall Length, Telescoping Gage

  • Item Code: 155-122
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Spring-loaded plunger expands within the bore (or groove), allowing determination of the internal diameter (or groove width)
    • With a knurled clamp

Tech Specs

Back To Top
Length Measurement 4.33 In
Primary Measuring Range Lower - Inch .5 In
Primary Measuring Range Upper - Inch .75 In
Range .5 - .75 In
Individual or Set Individual
Primary (Outside Diameter) Contact Point Material Hardened Steel
Thimble Diameter Measurement 5.5mm
Brand Mitutoyo
Mechanical or Digital Mechanical
