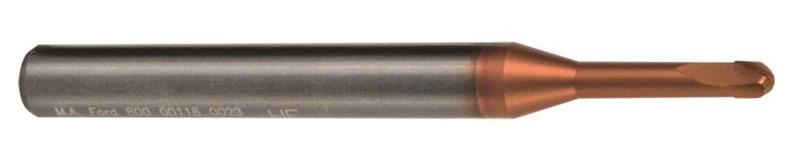

3mm Diameter Solid Carbide Altima 52 Coated Center Cutting TuffCut DM® 2-Flute Ball Nose End Mill
- Item Code: 15611810A
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® DM - Series 156
Center Cutting
ALtima® 52--Aluminum Titanium Nitride (AlTiN).
Series 156 is designed for high-productivity milling of hard and difficult to cut materials Rc 45-60. Coated with ALtima® 52 for materials Rc 52 and above.
Tech Specs
Back To Top| Helix Angle | 20° |
|---|---|
| Length of Cut | 3.0mm |
| Decimal Diameter | 0.1181" |
| Material | Solid Carbide |
| Series | Tuff Cut® DM |
| Brand | MA Ford |
| Coating/Finish | AlTiN |
| Shank Diameter | 6.0mm |
| Type | End Mill |
| Number of Flutes | 2 |
| Metric Diameter | 3.00 mm |
| Overall Length | 75mm |
