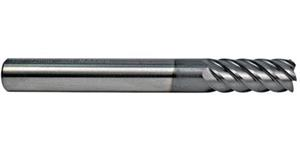

1/4 Inch Diameter Solid Carbide ALTima 52 Coated 0.020 Corner Radius TuffCut DM® Multi-Flute End Mill
- Item Code: 15725002A
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® DM - Series 157
Multi-Flute
Non-Center Cutting
Available in 7 Standard Corner Radii
Features
Back To Top- Designed for hardened materials Rc 50-65
- ALtima® 52 coating for materials Rc 52 and above
- 45° Helix
Tech Specs
Back To Top| Brand | MA Ford |
|---|---|
| Length of Cut | 5/8 Inch |
| Length of Cut | 5/8 Inch |
| Number of Flutes | 6 |
| Number of Flutes | 6 |
| Decimal Cutting Diameter | 0.2500" |
| Fractional Cutting Diameter | 1/4" |
| Decimal Cutting Diameter | 0.2500" |
| Shank Diameter | 1/4 Inch |
| Coating | AlTiN |
| Material | Solid Carbide |
| Radius Decimal | 0.0200" |
| Overall Length | 3-1/2 Inch |
| Overall Length | 3-1/2 Inch |
| Series | Tuff Cut® DM |
| Series | Tuff Cut® DM |
| Helix | 45° |
| Type | End Mill |
| Helix | 45° |
