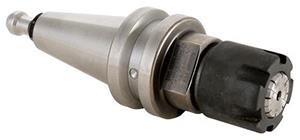

52mm Length, ISO 20 HS Mini Nut & Pull Stud ER16 Collet Chuck

  • Item Code: 16000-2016MC
  • Brand: Techniks
  • Unit Size: 1

Description

Techniks ISO Collet Chucks are balanced to 40,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.

Features Tech Specs

Features

Back To Top
    • Balanced up to 40,000 RPM at G2.5
    • T.I.R. 0.0001" or better from taper to collet pocket
    • PowerCOAT nut and retention knob included

Tech Specs

Back To Top
Gage Length (in) 2.05
Gage Length-Face Contact (mm) 50
Overall Length (in) 3.36
Gage Length (mm) 52
Lock Nut Diameter (in) 1.26
Body Diameter-Workpiece Side (mm) 28
Collet Series ER16
Overall Diameter (in) 1.18
Balanced to 40,000 RPM at G2.5
Gage Length-Face Contact (in) 1.97
Lock Nut Diameter (mm) 32
Overall Diameter (mm) 30
Type V-Flange Collet Chuck
Body Diameter-Workpiece Side (in) 1.102
Capacity Range (mm) 0.5 - 10.5mm
Capacity Range (in) 0.019" - 0.41"
Brand Techniks
Material 8620 Steel
Overall Length (mm) 85.3
Style Single Ended
Taper ISO20
Unit of Tool Metric or Inch
