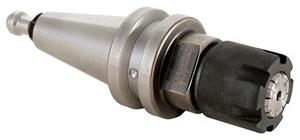

52mm Length, ISO 20 Slotted Nut & Pull Stud ER16 Collet Chuck

  • Item Code: 16000-2516
  • Brand: Techniks
  • Unit Size: 1

Description

Techniks ISO Collet Chucks are balanced to 40,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.

Features Tech Specs

Features

Back To Top
    • Balanced up to 40,000 RPM at G2.5
    • T.I.R. 0.0001" or better from taper to collet pocket
    • PowerCOAT nut and retention knob included

Tech Specs

Back To Top
Overall Length (mm) 85.3
Taper ISO20
Body Diameter-Workpiece Side (mm) 28
Overall Diameter (in) 1.18
Gage Length (mm) 52
Lock Nut Diameter (in) 1.26
Gage Length-Face Contact (in) 1.97
Lock Nut Diameter (mm) 32
Material 8620 Steel
Unit of Tool Metric or Inch
Brand Techniks
Overall Diameter (mm) 30
Style Single Ended
Type V-Flange Collet Chuck
Capacity Range (mm) 0.5 - 10.5mm
Collet Series ER16
Gage Length (in) 2.05
Gage Length-Face Contact (mm) 50
Overall Length (in) 3.36
Balanced to 40,000 RPM at G2.5
Body Diameter-Workpiece Side (in) 1.102
Capacity Range (in) 0.019" - 0.41"
