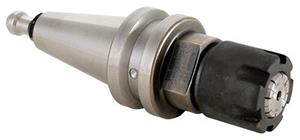

52mm Length, ISO 20 Slotted Nut & Pull Stud ER20 Collet Chuck
- Item Code: 16000-2520
- Brand: Techniks
- Unit Size: 1
Description
Techniks ISO Collet Chucks are balanced to 40,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Features
Back To Top- Balanced up to 40,000 RPM at G2.5
- T.I.R. 0.0001" or better from taper to collet pocket
- PowerCOAT nut and retention knob included
Tech Specs
Back To Top| Gage Length (mm) | 52 |
|---|---|
| Gage Length-Face Contact (in) | 1.97 |
| Overall Diameter (in) | 1.18 |
| Overall Diameter (mm) | 30 |
| Collet Series | ER20 |
| Brand | Techniks |
| Capacity Range (in) | 0.019" - 0.55" |
| Capacity Range (mm) | 0.5 - 14mm |
| Material | 8620 Steel |
| Balanced to | 40,000 RPM at G2.5 |
| Gage Length (in) | 2.05 |
| Gage Length-Face Contact (mm) | 50 |
| Lock Nut Diameter (in) | 1.38 |
| Overall Length (in) | 3.36 |
| Body Diameter-Workpiece Side (mm) | 34 |
| Overall Length (mm) | 85.3 |
| Style | Single Ended |
| Taper | ISO20 |
| Type | V-Flange Collet Chuck |
| Unit of Tool | Metric or Inch |
| Body Diameter-Workpiece Side (in) | 1.339 |
| Lock Nut Diameter (mm) | 35.1 |
