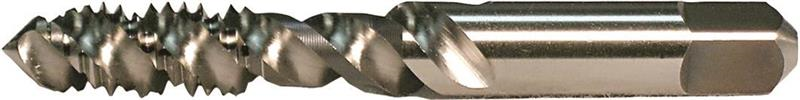

#6-32 Uncoated 2 Fast Spiral Flutes H3 HSS Bottom Chamfer 1-2 Pitch Tap
- Item Code: 16008
- Brand: WIDIA
- Unit Size: 1
Description
Series 5314
Spiral-FluteTaps
Blind Holes in General Machining Applications
Features
Back To Top- Production Taps
- Machine Screw and Fractional
- Bottoming Chamfer
Tech Specs
Back To Top| Coating | Uncoated |
|---|---|
| Thread Type | NC/UNC/UNJC |
| Number of Flutes | 2 |
| Overall Length | 2 Inch |
| Product Name | Tap |
| Material | HSS |
| Square Size | 0.1100 Inch |
| Thread Length | 0.3750 Inch |
| Brand | WIDIA |
| Diameter | #6 - 32 |
| Shank Style | Square |
| Unit of Measure | Inch |
| Chamfer | Bottoming |
| Shank Diameter | 0.1410 Inch |
| Flute Style | Helix |
| Hand of Tool | Right Hand |
| Thread Limit | H3 |
| Threads Per Inch | 32 |
