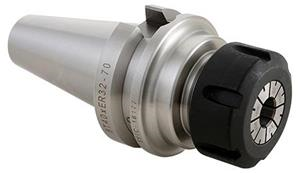

76mm Length, BT35 SYOZ 25 with Nut Collet Chuck
- Item Code: 16010-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Features
Back To Top- Balanced to 25,000 RPM at G2.5
- T.I.R. 0.0001" measured from taper to collet pocket
- PowerCOAT nut included for 75% more clamping power
Tech Specs
Back To Top| Body Diameter-Workpiece Side (in) | 1.378 |
|---|---|
| Gage Length (in) | 2.99 |
| Gage Length (mm) | 76 |
| Gage Length-Face Contact (in) | 2.91 |
| Gage Length-Face Contact (mm) | 74 |
| Overall Diameter (in) | 2.09 |
| Overall Diameter (mm) | 53 |
| Overall Length (in) | 5.21 |
| Overall Length (mm) | 132.3 |
| Taper | BT35 |
| Balanced to | 25,000 RPM at G2.5 |
| Capacity Range (in) | 0.125" - 1" |
| Lock Nut Diameter (in) | 2.36 |
| Body Diameter-Workpiece Side (mm) | 35 |
| Collet Series | SYOZ25 |
| Unit of Tool | Metric or Inch |
| Brand | Techniks |
| Capacity Range (mm) | 3.2 - 25.4mm |
| Lock Nut Diameter (mm) | 59.9 |
| Material | 8620 Steel |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
